Cisco ACI – Convert Leaf Ports back (Downlink to Uplink)

In case you wan't to convert some converted Leaf Ports back to the Uplink function, this post can help you!

Home / Posts / Cisco ACI – Convert Leaf Ports back (Downlink to Uplink)
Auvik - Monitor Everything on your Network

As i described in another Post there is the possibility to change a ACI Leaf Uplink Port to Downlink mode. This can be useful if you require some 40/100G Ports but don’t want to add new Leafs.

If you now wan’t to convert some of these Downlinks back to Uplinks, you can follow this guide here.

Navigate to Fabric -> Pod and select the Leaf on which you wan’t to change the Port behaviour.

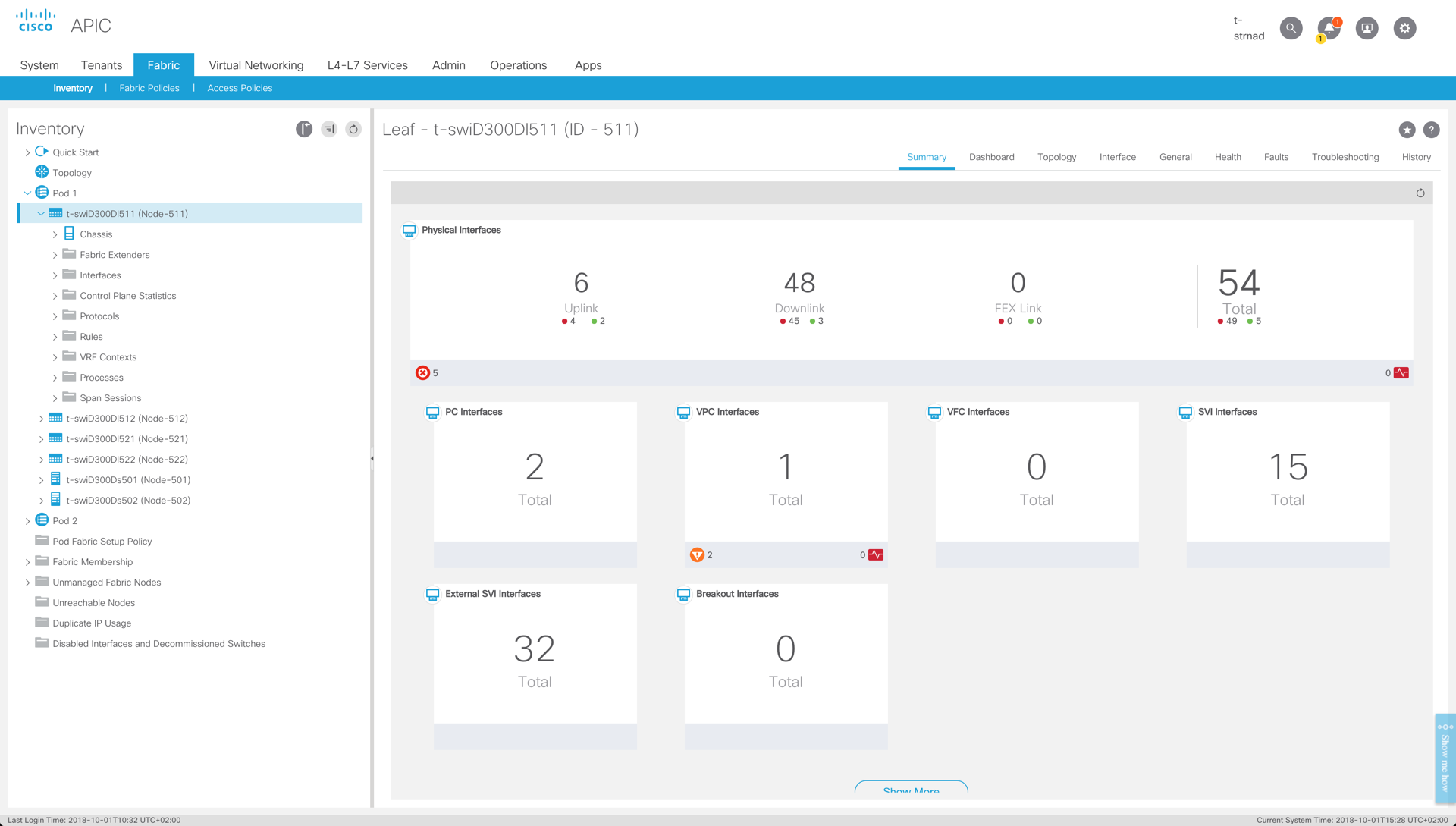

Overview of a leaf

Change to the Interface Tab and select “Configuration” on the right side.

Interface view of a leaf

Now select the Interfaces you wish to change and then select “Uplink”.

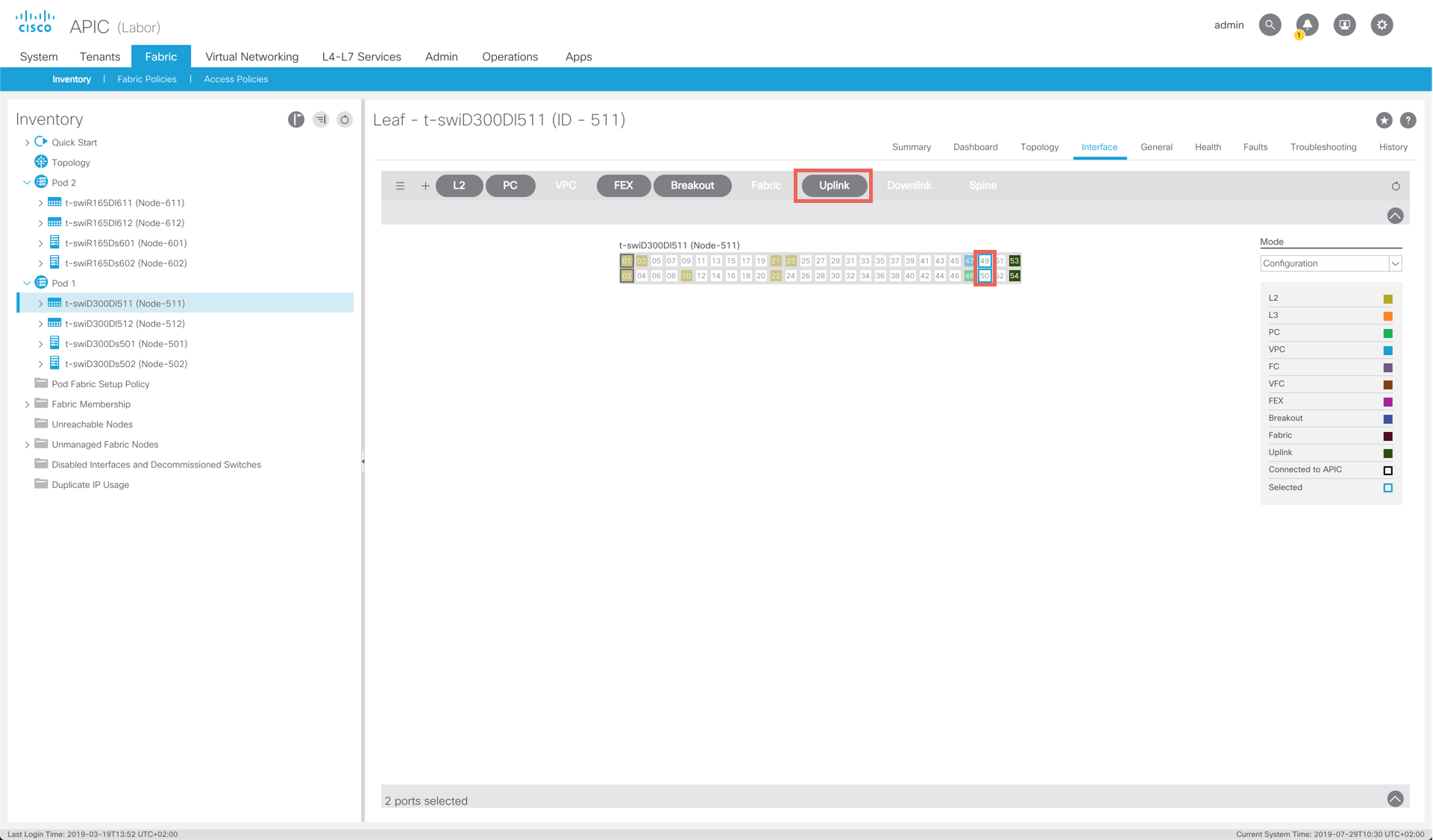

Change type to Uplink

You then need to confirm the action, to make the change active you have to reload the ACI Leaf switch.

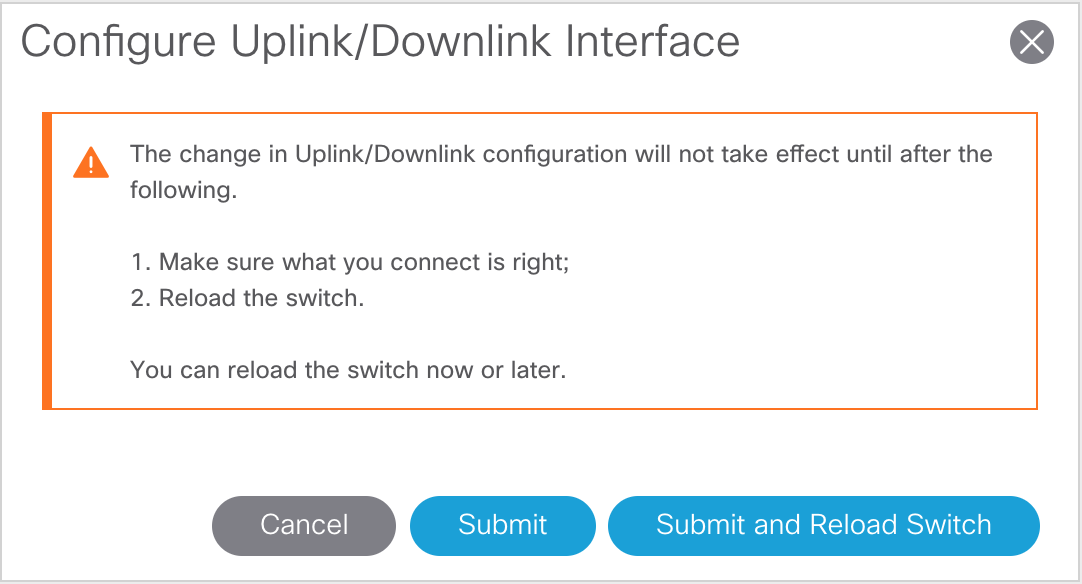

Confirmation dialog

That’s it, after the Switch is reloaded the interfaces are back in Uplink mode an can be connected to the Spines 🙂
